High Strength Grade 4.8 8.8 10.9 12.9 Steel Galvanized White Blue Zinc Plated DIN7984 Low Head Hex Socket Bolts
Key words：
High Strength Grade 4.8 8.8 10.9 12.9 Steel Galvanized White Blue Zinc Plated DIN7984 Low Head Hex Socket Bolts
Email us：wang15188881444@gmail.com
Related Products
Product Details

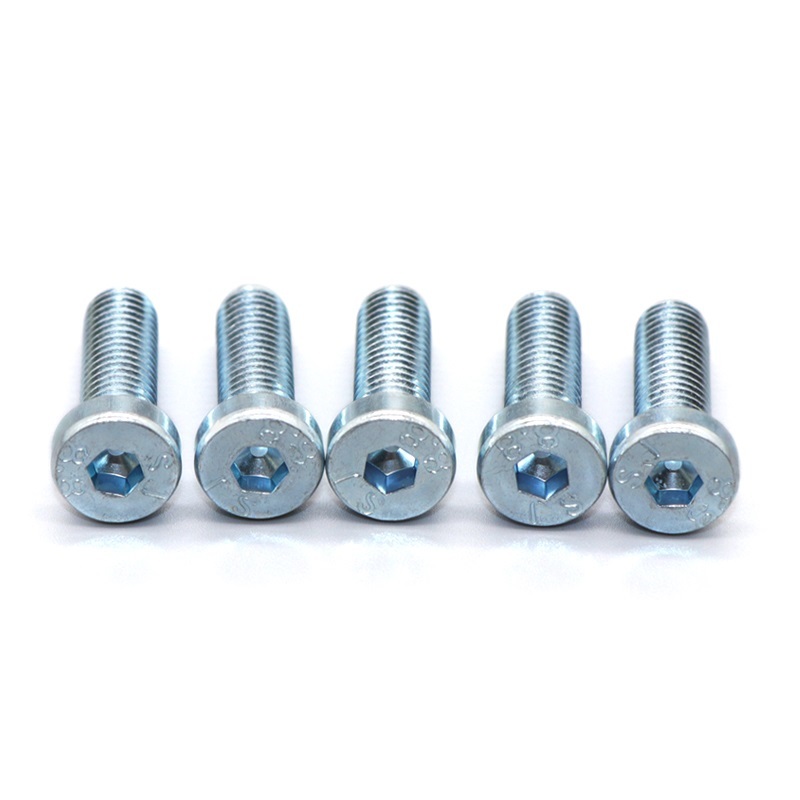

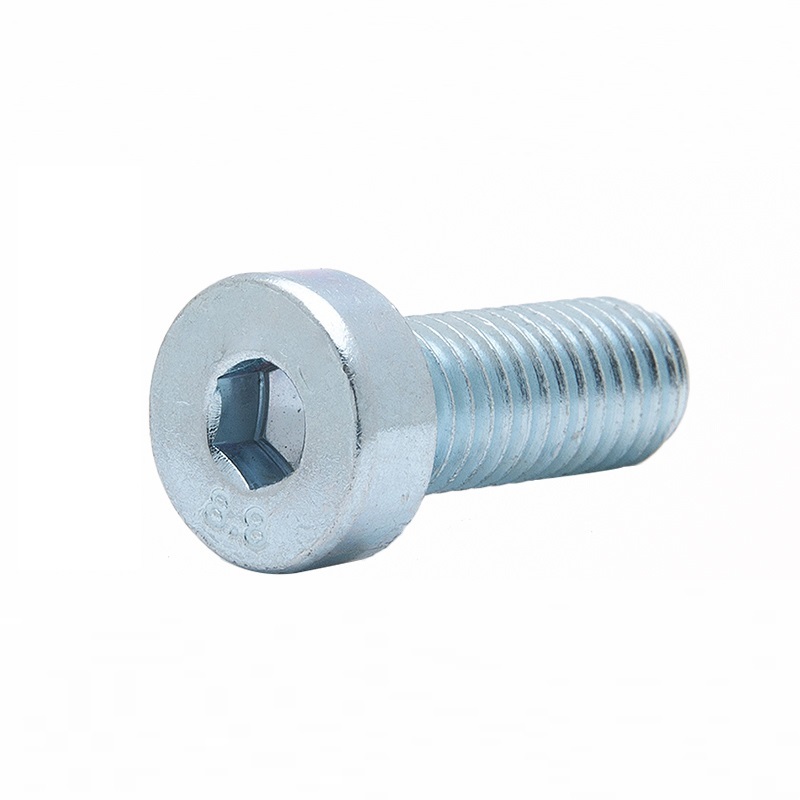

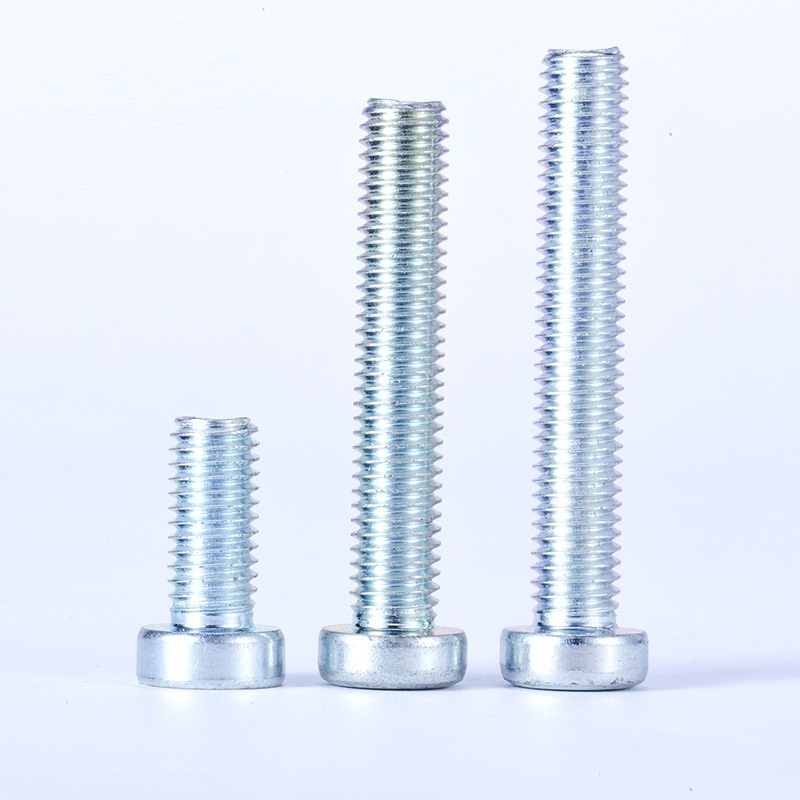

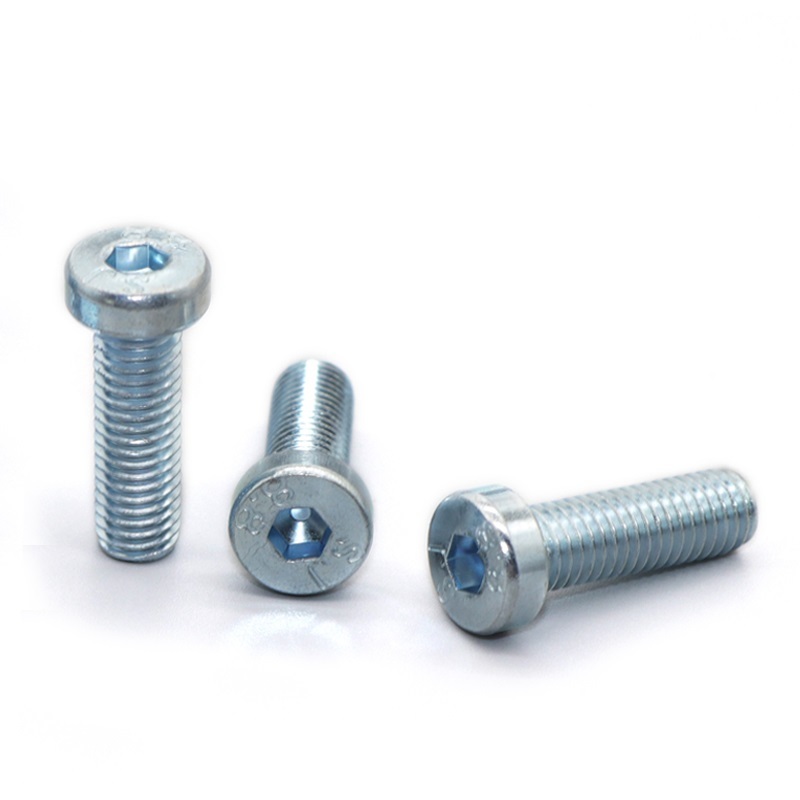

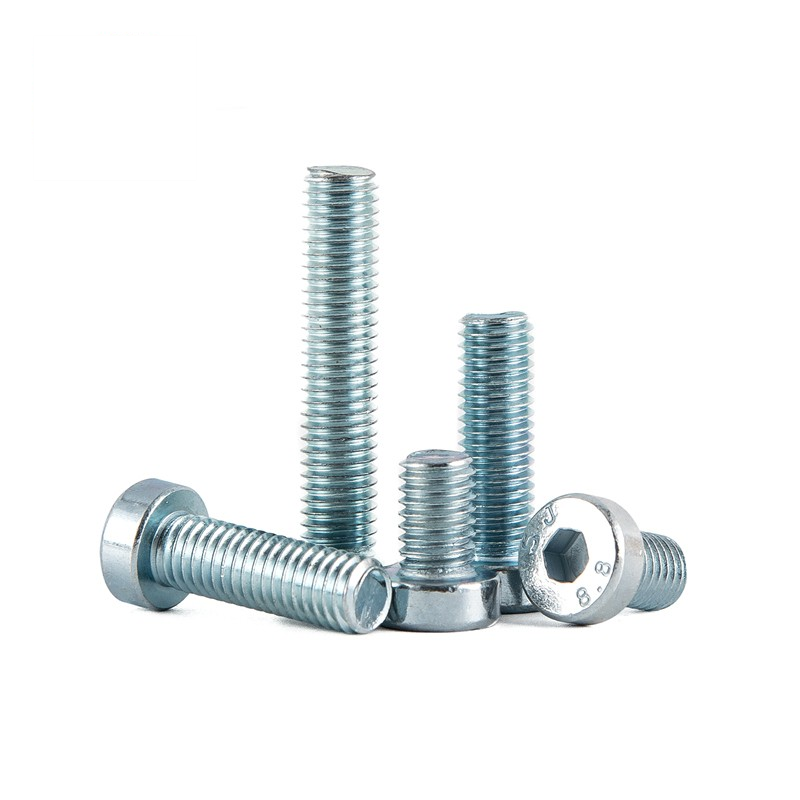

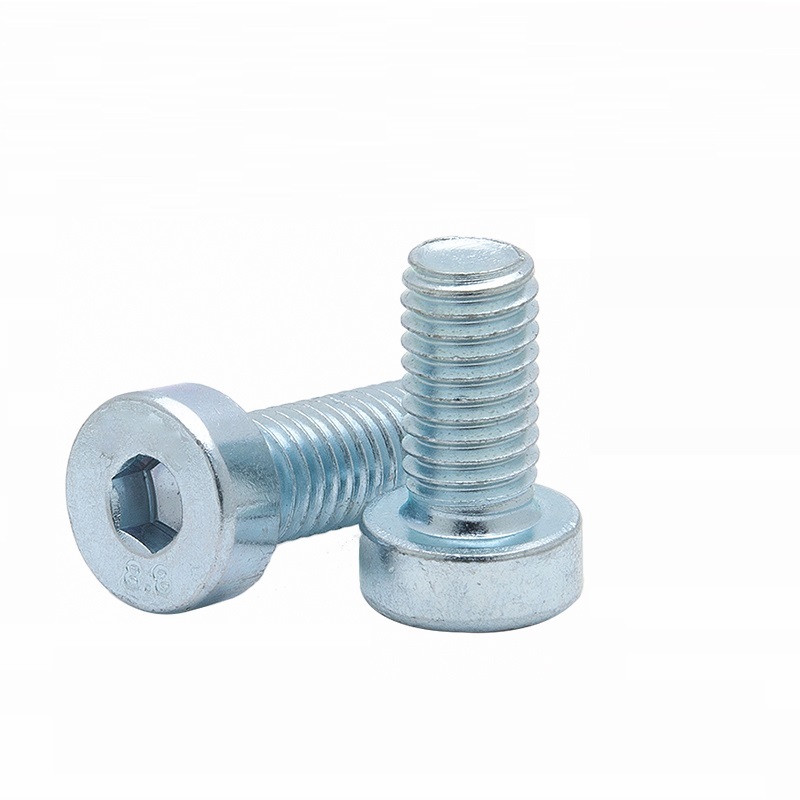

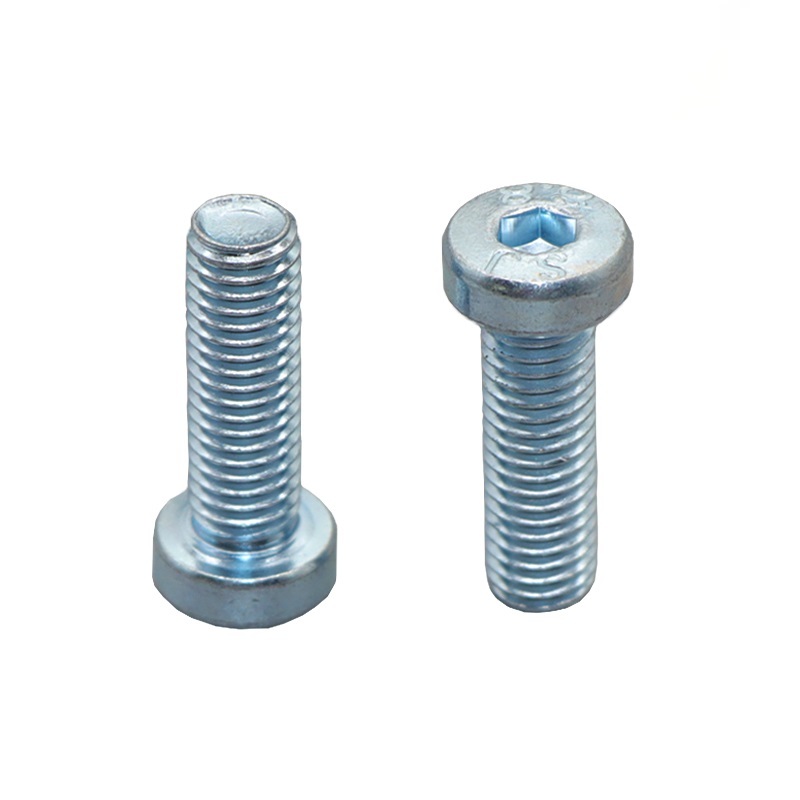

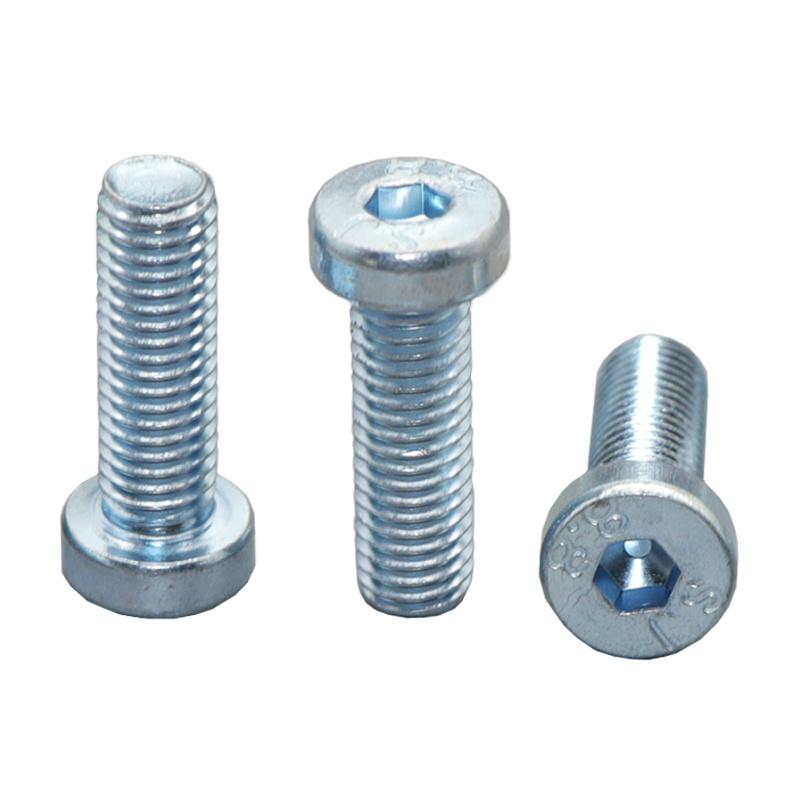

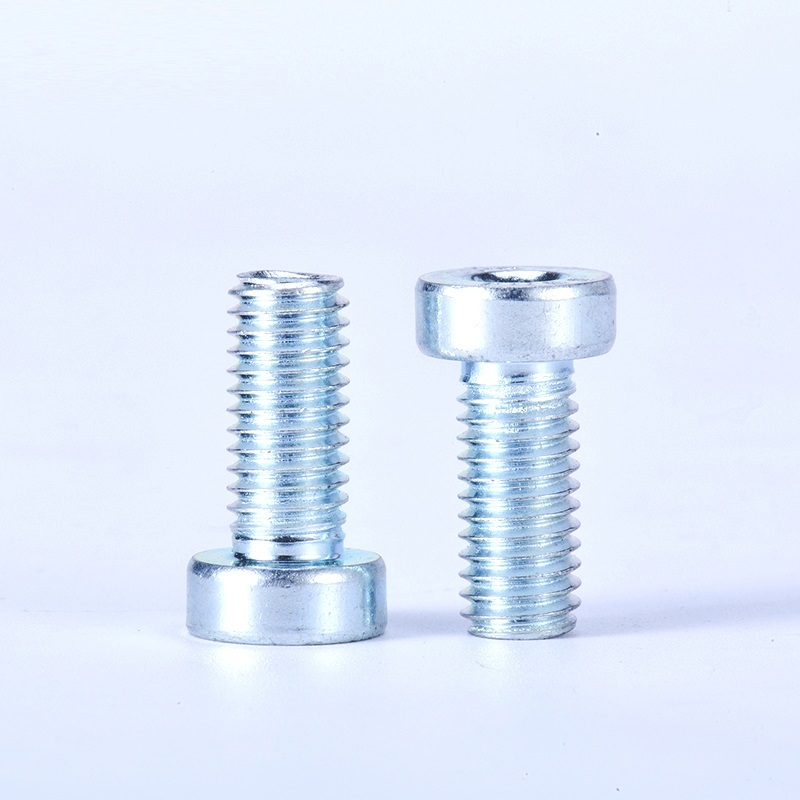

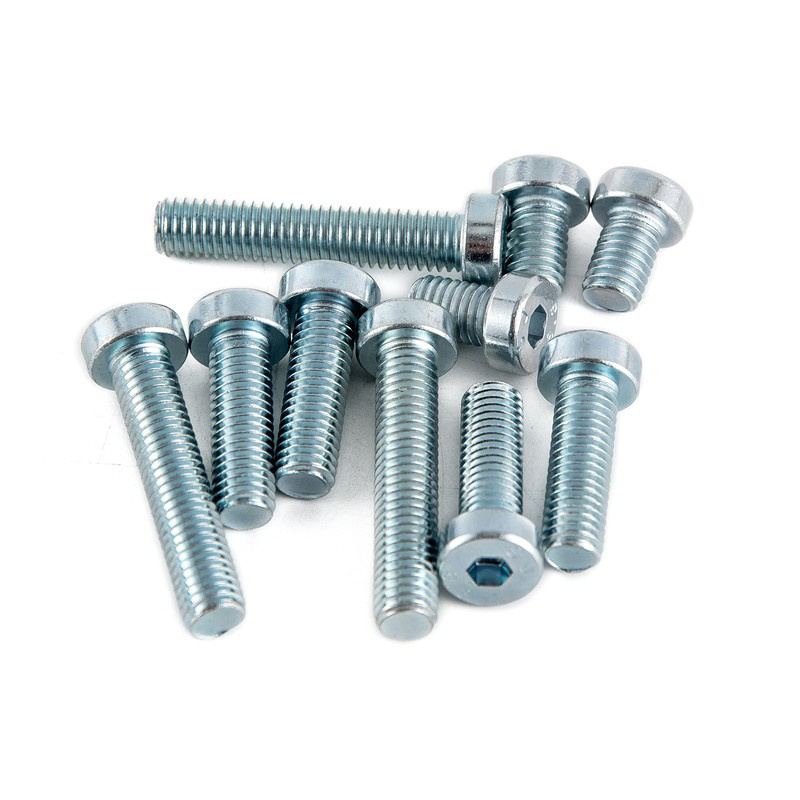

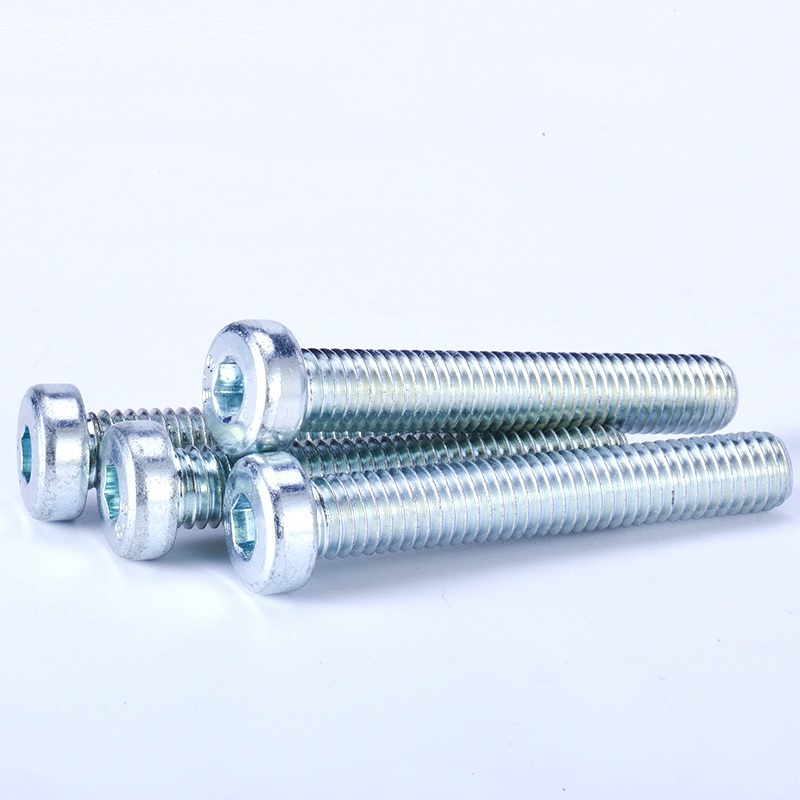

Product Photos and Information
| Name | Low head allen bolts | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO UNC BSW JIS etc. | Strength level | 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80 |
| Size | M3-M50 | Surface finish | ZP\HDG\BLACK\Dacromet etc. |
| Length | 15-500 | Samples | Available |
|
|
Product Standards
Hexagon socket head cap screws DIN 7984
| Thread specification | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | |
| d | ||||||||||||||
| P | pitch | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 |
| b | L≤125 | 12 | 14 | 16 | 18 | twenty two | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 |
| 125＜L≤200 | - | - | - | - | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | 60 | |
| L＞200 | - | - | - | - | - | - | - | - | 57 | 61 | 65 | 69 | 73 | |
| dk | max = nominal | 5.5 | 7 | 8.5 | 10 | 13 | 16 | 18 | twenty one | twenty four | 27 | 30 | 33 | 36 |
| minimum | 5.32 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 32.61 | 35.61 | |
| ds | max = nominal | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | twenty two | twenty four |
| minimum | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 | 21.67 | 23.67 | |
| k | max = nominal | 2 | 2.8 | 3.5 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 |
| minimum | 1.86 | 2.66 | 3.32 | 3.82 | 4.82 | 5.82 | 6.78 | 7.78 | 8.78 | 9.78 | 10.73 | 11.73 | 12.73 | |
| s | Nominal | 2 | 2.5 | 3 | 4 | 5 | 7 | 8 | 10 | 12 | 12 | 14 | 14 | 17 |
| minimum | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 7.025 | 8.025 | 10.025 | 12.032 | 12.032 | 14.032 | 14.032 | 17.05 | |
| maximum value | 2.1 | 2.6 | 3.1 | 4.12 | 5.14 | 7.175 | 8.175 | 10.175 | 12.212 | 12.212 | 14.212 | 14.212 | 17.23 | |
| t | Nominal | 1.5 | 2.3 | 2.7 | 3 | 3.8 | 4.5 | 5 | 5.3 | 5.5 | 6.5 | 7.5 | 8 | 8 |
| minimum | 1.38 | 2.18 | 2.58 | 2.88 | 3.65 | 4.35 | 4.85 | 5.15 | 5.35 | 6.32 | 7.32 | 7.82 | 7.82 | |
| maximum value | 1.62 | 2.42 | 2.82 | 3.12 | 3.95 | 4.65 | 5.15 | 5.45 | 5.65 | 6.68 | 7.68 | 8.18 | 8.18 | |
| Thousand pieces of steel weight ≈kg | - | - | - | - | - | - | - | - | - | - | - | - | - | |
