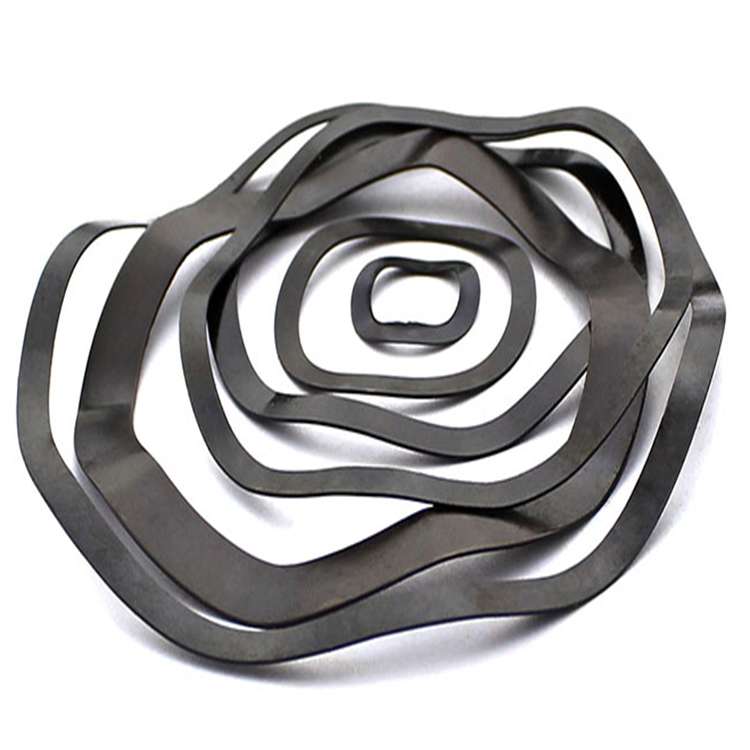

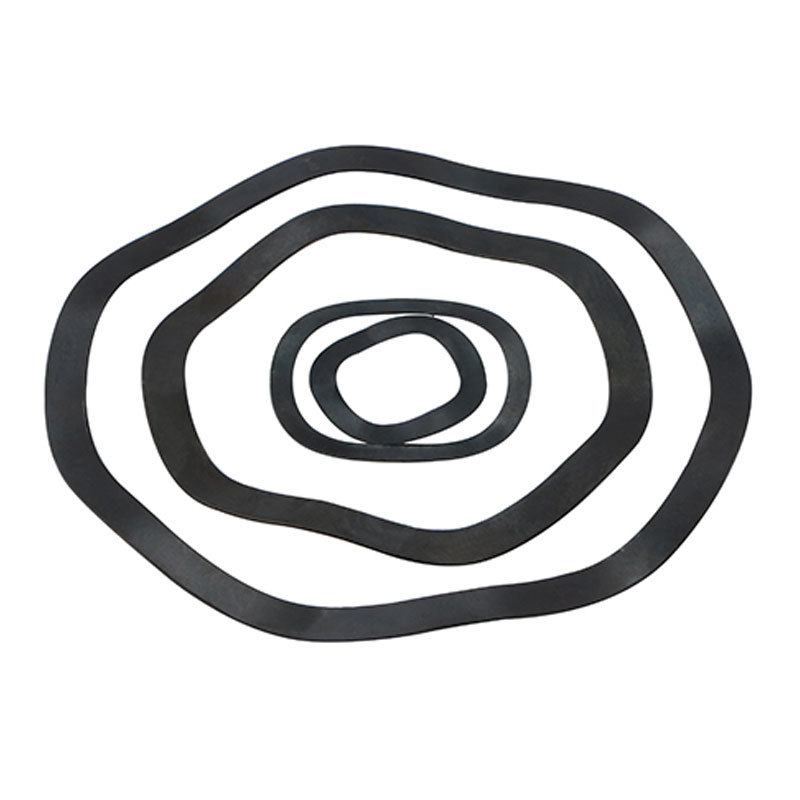

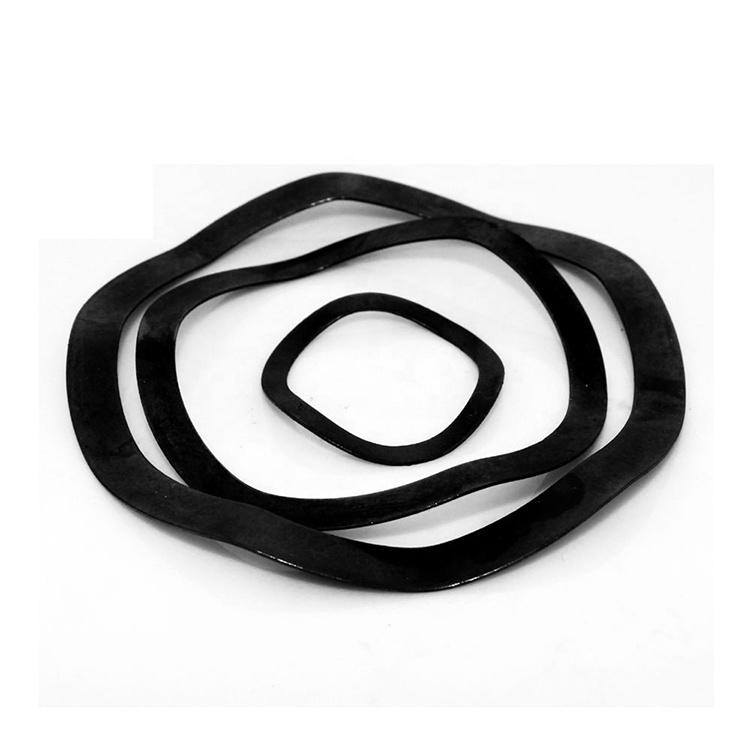

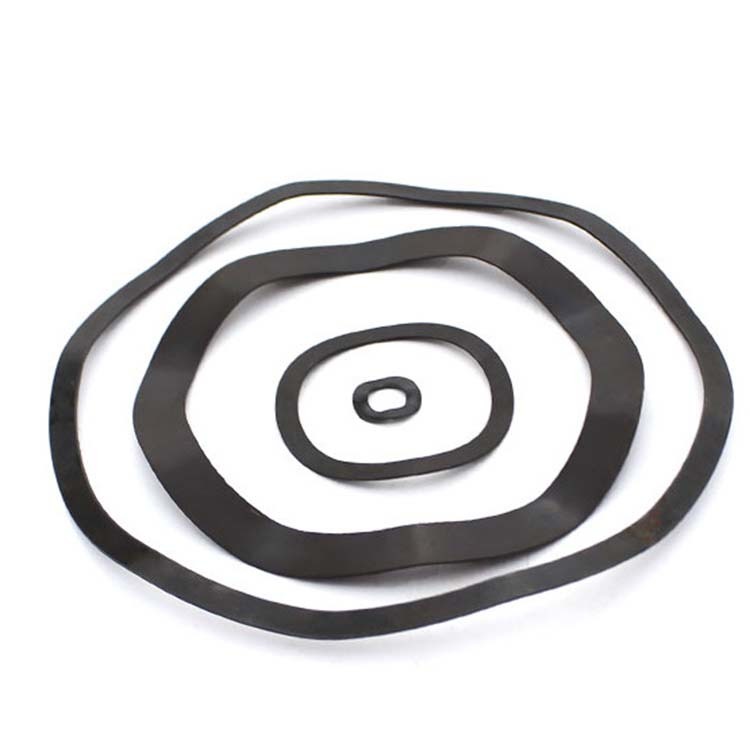

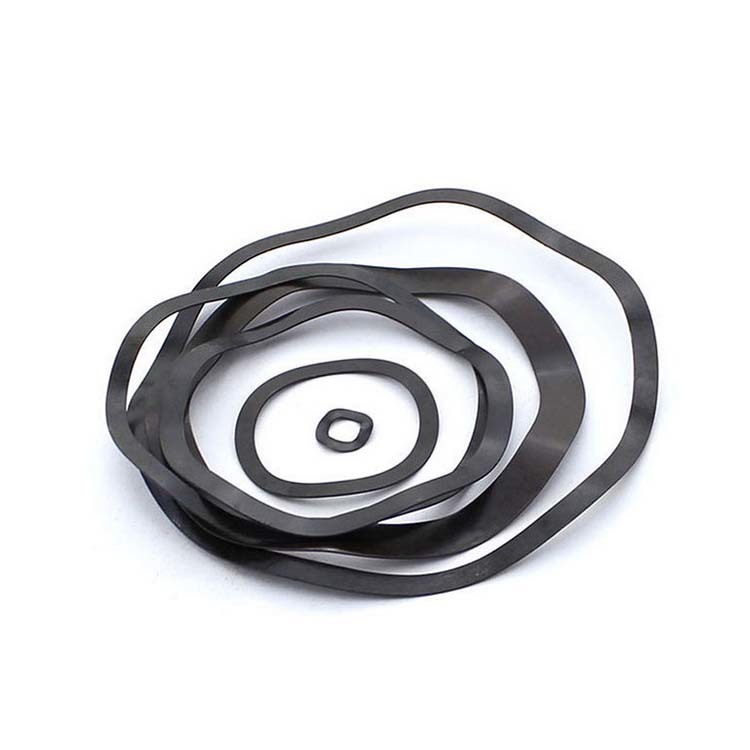

Black Oxide DIN137 DIN42013 Wave Washers
Key words：
Black Oxide DIN137 DIN42013 Wave Washers
Email us：wang15188881444@gmail.com
Related Products
Product Details
Product Photos and Information
| Name | Saddle Spring Washers | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO UNC BSW JIS etc. | Strength level | 50MN 65MN 4.8 8.8 etc. |
| Size | M1-M10 | Surface finish | ZP\Plain etc. |
| Length | 0.35-2 | Samples | Available |
|
|
Product Standards
Saddle spring washers DIN 137
| Nominal diameter | 1 | 1.2 | 1.4 | 1.7 | 1.8 | 2 | 2.3 | 2.6 | |
| d | Min = Nominal (H14) | 1.1 | 1.3 | 1.5 | 1.8 | 1.9 | 2.2 | 2.5 | 2.8 |
| maximum value | 1.35 | 1.55 | 1.75 | 2.05 | 2.15 | 2.45 | 2.75 | 3.05 | |
| dc | Nominal (js16) | 2.5 | 3 | 3 | 4 | 4 | 4.5 | 5 | 5.5 |
| maximum value | 2.8 | 3.3 | 3.3 | 4.375 | 4.375 | 4.875 | 5.375 | 5.875 | |
| minimum | 2.2 | 2.7 | 2.7 | 3.625 | 3.625 | 4.125 | 4.625 | 5.125 | |
| h | Nominal | 0.2 | 0.2 | 0.25 | 0.25 | 0.25 | 0.3 | 0.3 | 0.3 |
| maximum value | 0.22 | 0.22 | 0.27 | 0.27 | 0.27 | 0.33 | 0.33 | 0.33 | |
| minimum | 0.18 | 0.18 | 0.23 | 0.23 | 0.23 | 0.27 | 0.27 | 0.27 | |
| H | minimum | 0.35 | 0.35 | 0.4 | 0.45 | 0.45 | 0.5 | 0.5 | 0.55 |
| maximum value | 0.7 | 0.7 | 0.8 | 0.9 | 0.9 | 1 | 1 | 1.1 | |
| Thousand pieces (steel)≈kg | ≈ | 0.006 | 0.009 | 0.01 | 0.02 | 0.02 | 0.028 | 0.035 | 0.041 |
| Nominal diameter | 3 | 3.5 | 4 | 5 | 6 | 7 | 8 | 10 | |
| d | Min = Nominal (H14) | 3.2 | 3.7 | 4.3 | 5.3 | 6.4 | 7.4 | 8.4 | 10.5 |
| maximum value | 3.5 | 4 | 4.6 | 5.6 | 6.76 | 7.76 | 8.76 | 10.93 | |
| dc | Nominal (js16) | 6 | 7 | 8 | 10 | 11 | 12 | 15 | 18 |
| maximum value | 6.375 | 7.45 | 8.45 | 10.45 | 11.55 | 12.55 | 15.55 | 18.55 | |
| minimum | 5.625 | 6.55 | 7.55 | 9.55 | 10.45 | 11.45 | 14.45 | 17.45 | |
| h | Nominal | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.8 |
| maximum value | 0.45 | 0.45 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.86 | |
| minimum | 0.35 | 0.35 | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 | 0.74 | |
| H | minimum | 0.65 | 0.7 | 0.8 | 0.9 | 1.1 | 1.2 | 1.7 | 2 |
| maximum value | 1.3 | 1.4 | 1.6 | 1.8 | 2.2 | 2.4 | 3.4 | 4 | |
| Thousand pieces (steel)≈kg | ≈ | 0.063 | 0.088 | 0.14 | 0.222 | 0.247 | 0.265 | 0.476 | 1.05 |
